Driver
Keith Oyama
Event
Practice
Date
12/26/2022
Track
Revelation Raceway, CA
Qualify
n/a
TQ
Main
n/a
Finish
n/a
Best Lap Time
32.8

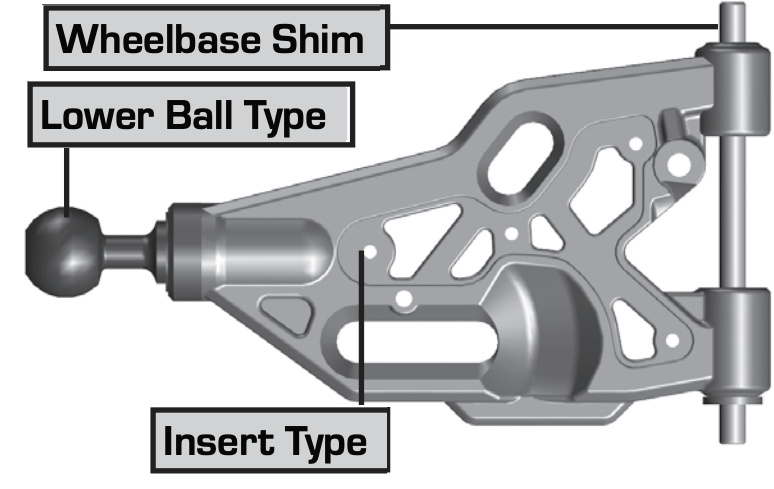

Front Suspension
Size
2.2mm
Gap
2.0mm

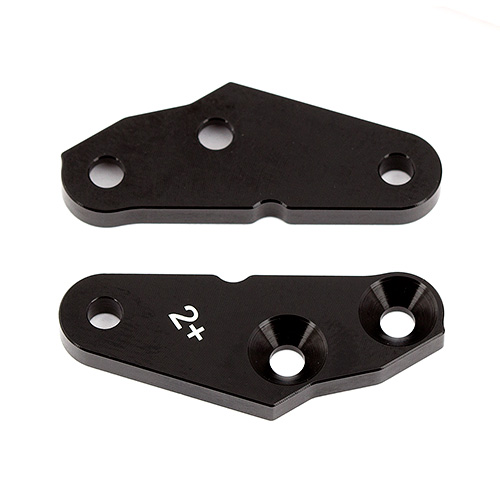

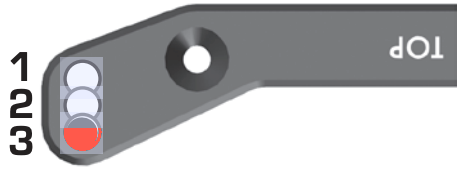

Steering Arm Plate#81063 +2 deg
Drive ShaftCVAs Universals

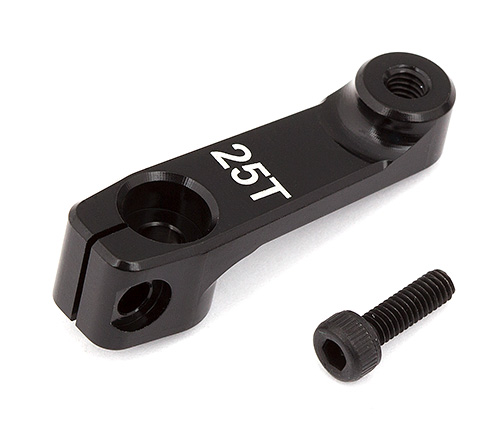

Servo Horn
FT Aluminum 20 mm #1368

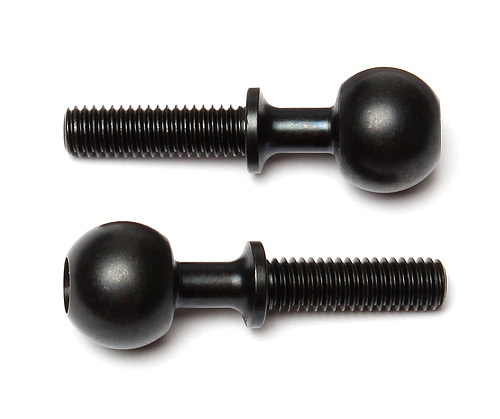

w/ 2mm shim under the steering ball stud
w/ 2mm shim under the steering ball stud
Droop
Axle = Chassis Level + 2mm (26mm w/ 30mm droop block)
Upper Ball Shim1.4 mm
Washers0 mm
Lower Ball ShimL:0.35 mm / R:0 mm (Camber -1.5°)

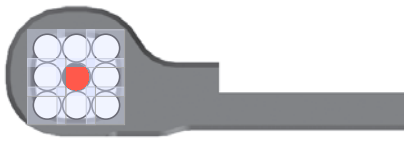

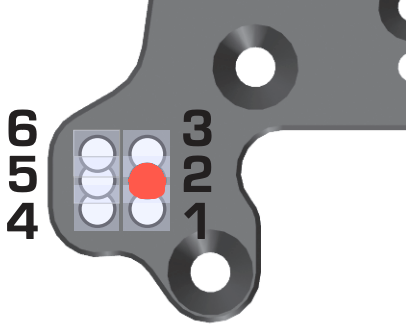

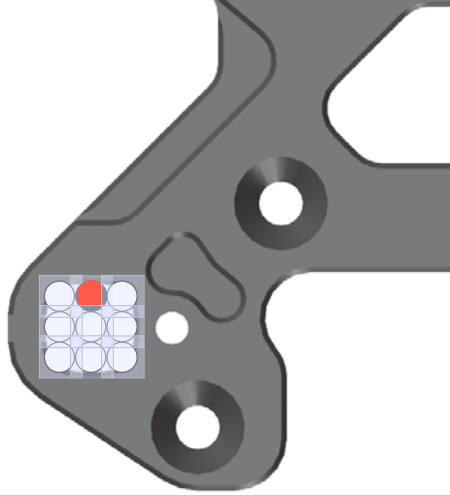

Upper Arm Mount

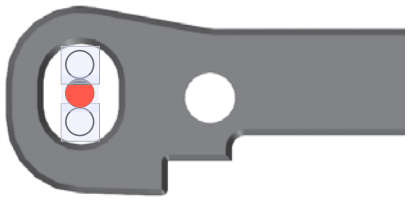

Arm Mount A
Arm Mount B

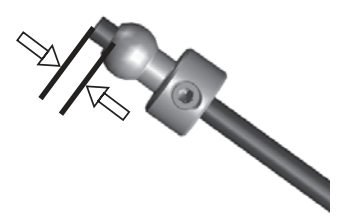

Rear Suspension
Size
2.4mm
Gap
5.0mm

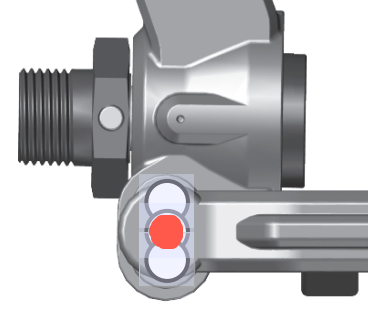

Ball
Inserts
Inserts
Droop
Axle = Chassis Level - 4mm (20mm w/ 30mm droop block)

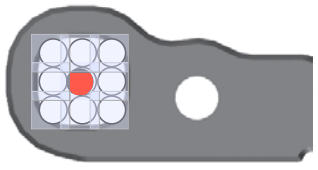

Arm Mount C

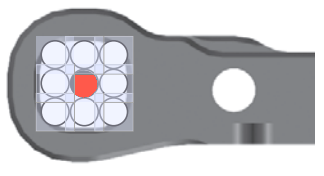

Arm Mount D
Electronics
Radio
Futaba 10PX
ServoReedy RT3507A #27117
EPAThrottle F/100%, Brake/60%
EXPOLinear
ESCHobbywing RX8 Pro
MotorHobbywing 4268 SD G3 2200kV
Protek 2S 130C 5000mAh PTK-5102-22
Saddle Brick
PositionRear Center Forward
Tray PositionRear Forward
Differential
| Front | Center | Rear | |
| Fluid | #5454 FT 7k  |
#5454 FT 7k |
#5444 FT 4k  |
| Gears | HTC | HTC | HTC |
| Mass | 45.6g | 45.6g | 45.5g |
Gearing

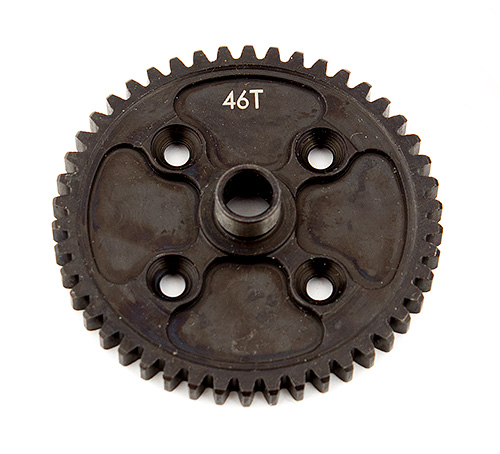

Spur Gear#81386 RC8B3.1 Spur Gear, 46T, Mod 1

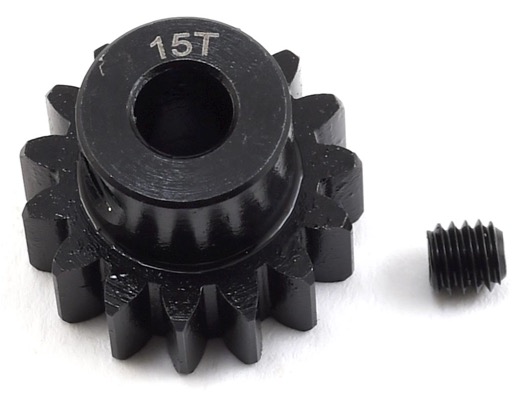

PinionProtek Mod1 15T (5mm Bore)

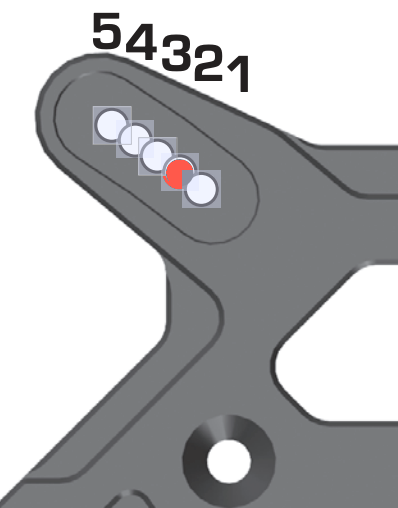

Shocks
| Front | Rear |  |
||||||||||||||||||||||||
| Piston | 8x1.2 Tapered | 8x1.2 Tapered | ||||||||||||||||||||||||
| Fluid | #TLR74011 42.5wt (563cSt)  |
#TLR74009 37.5wt (468cSt)  |
||||||||||||||||||||||||

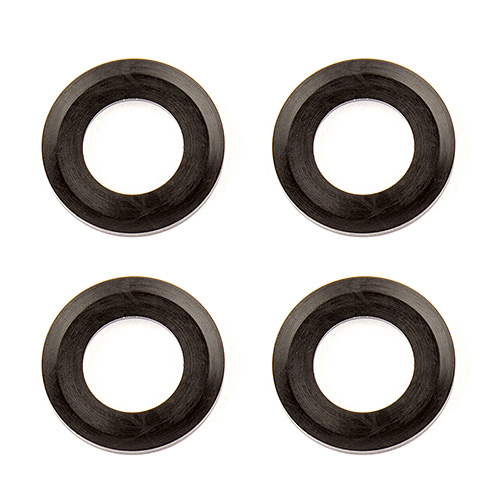

| Bladder | #81184 Bleeder Shock Cap Seals, 16 mm  |
#81184 Bleeder Shock Cap Seals, 16 mm |
||||||||||||||||||||||||
| Rebound | None | None | ||||||||||||||||||||||||
| Spring |

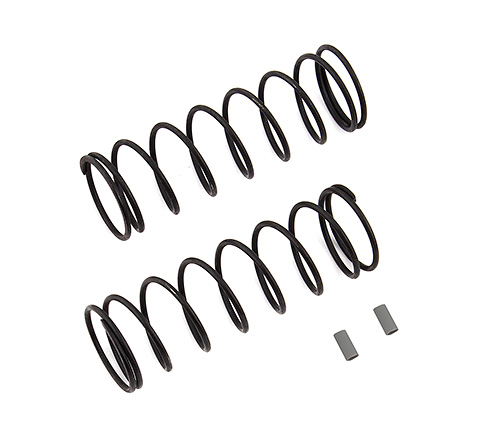

#81224 Gray
|

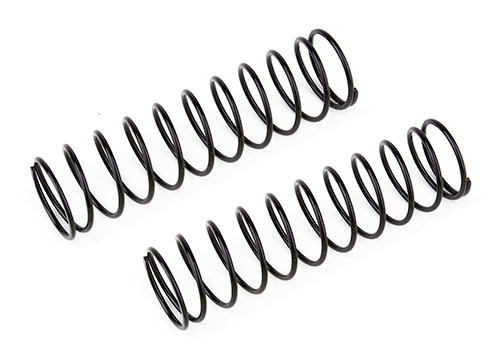

#81235 Black
|
||||||||||||||||||||||||
| Length | 105 mm | 126 mm | ||||||||||||||||||||||||
| Notes |
【O リング】Oringsandmore.com で購入の 3.4x1.9mm のシリコン O リング。 【グリーンスライム】 NOLEEN SF3 |
|||||||||||||||||||||||||
Track Info
| Size | Small Medium Large Extra Large |
| Surface | Dirt Carpet Astroturf Multi Surface |
| Traction | Low Medium High Very High |
| Moisture | Dry Damp Wet |
| Condition | Indoor Outdoor Dusty Hard Packed Bumpy Grooved Smooth Loamy |
| Temperature | Ambient Track 70° F |
Tires
Front TireLUGS TQ'S Soft Long Wear
Rear TireLUGS TQ'S Soft Long Wear

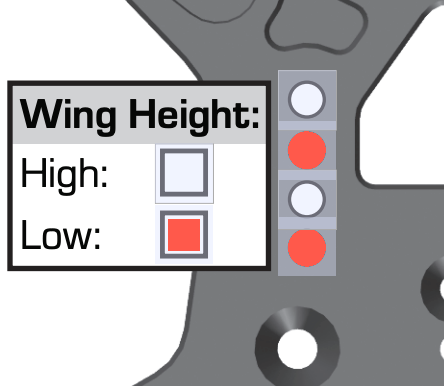

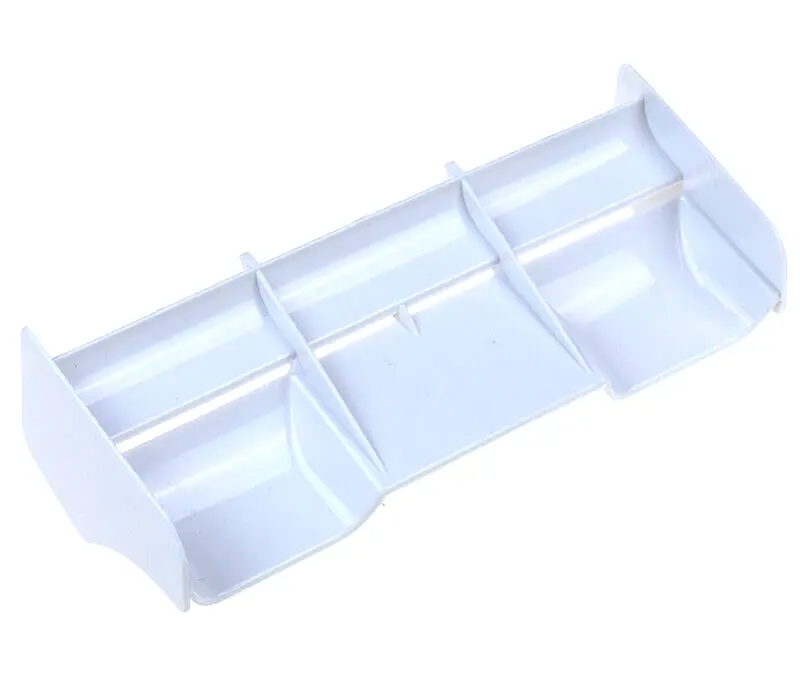

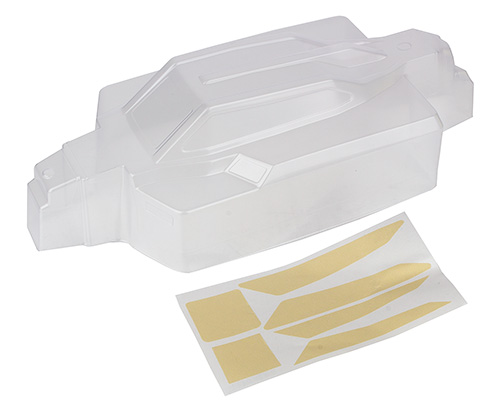

Body and Wing
Weight
Total Weight
Notes
Vehicle Comments
| Notes |
