Name:
Keith Oyama
Date:
2/20/2023
Event:
Practice
Track:
Revelation Raceway
Track Info
| Indoor Tight Smooth Hard Packed Blue Groove Wet Low Bite High Bite Outdoor Open Rough Loose/Loamy Dry Dusty Med Bite Other |

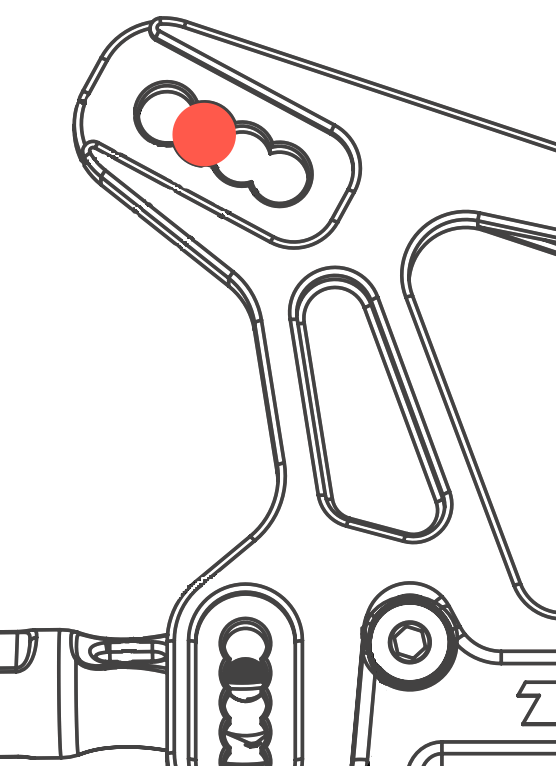

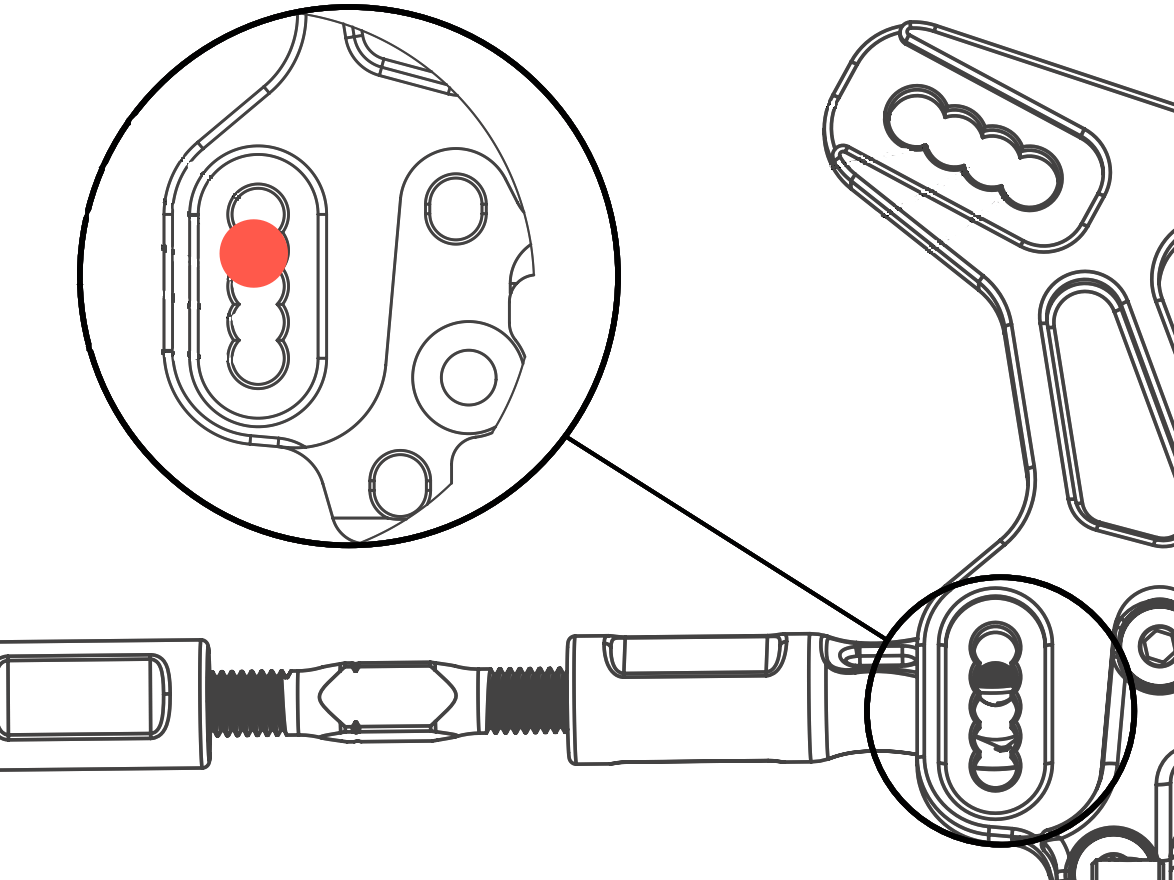

Front Suspension
Ride Height
27mm
Camber
-1°
Toe
1° out
Sway Bar
2.4mm
Drive Shaft
CVA
#TLR242029
Universals
#TLR242047
#TLR242029
Universals
#TLR242047

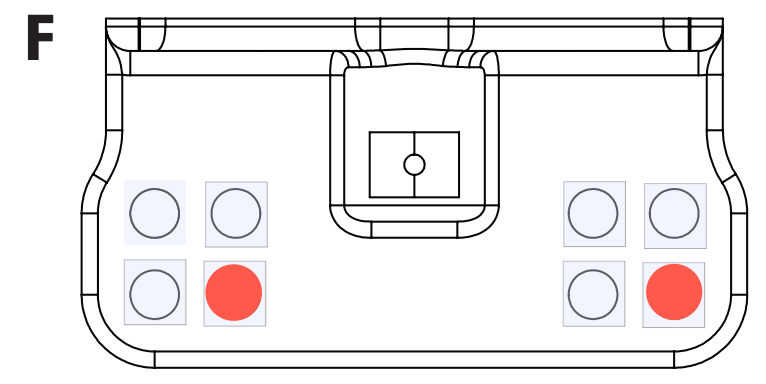

Front Wing
Servo Saver Arm
Composite
Aluminum #TLR341011
CompositeAluminum #TLR341011

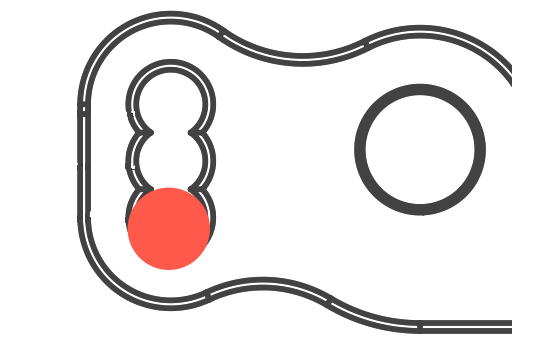

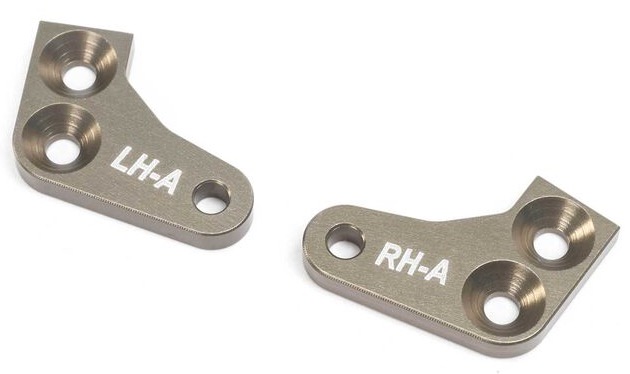

Steering Arm

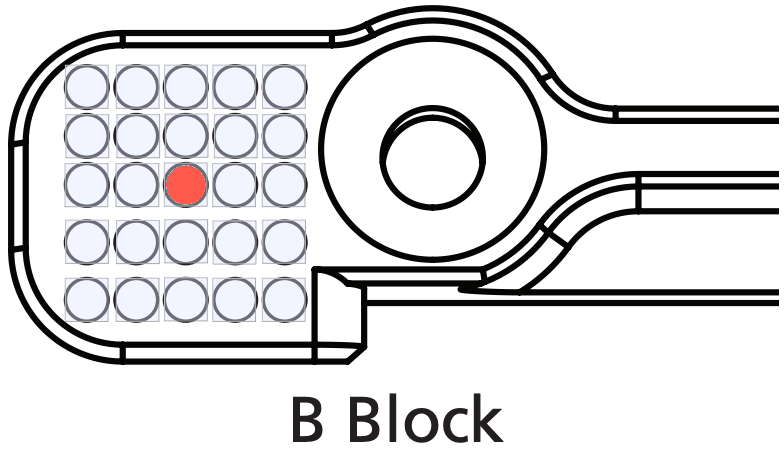

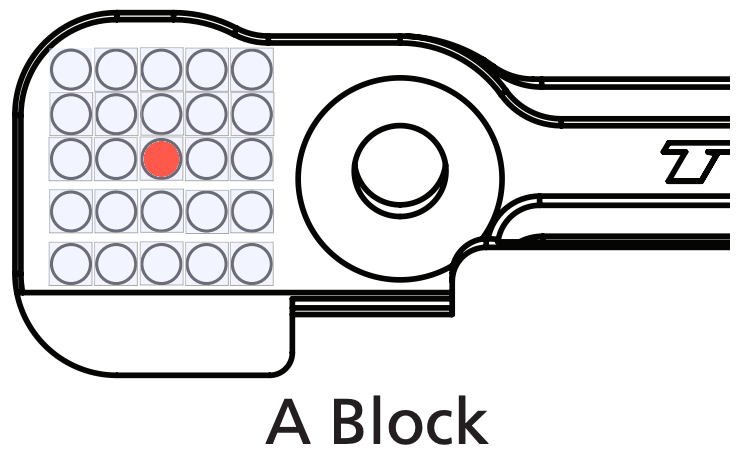

A
B
AB
|
0mm 1mm 2mm |
 |
|
0mm 1mm 2mm |
 |
 |
|
Incline Std |
 |

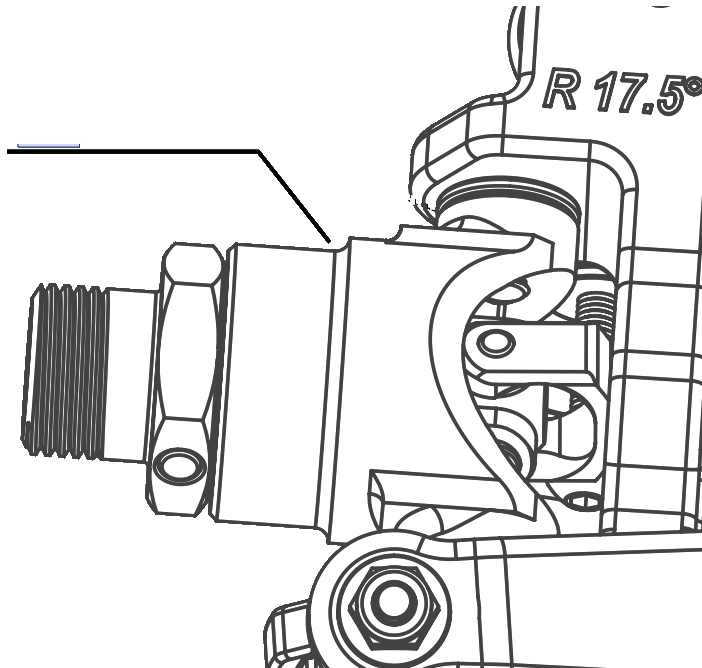

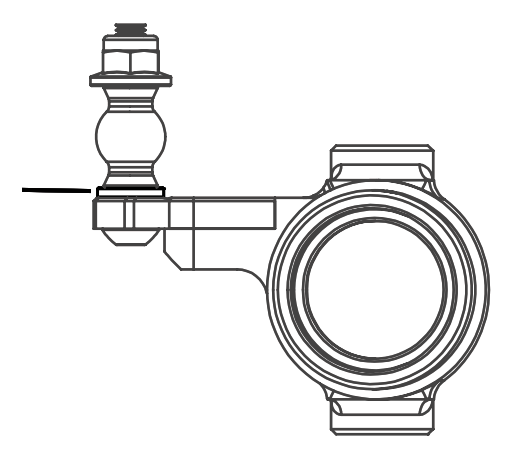

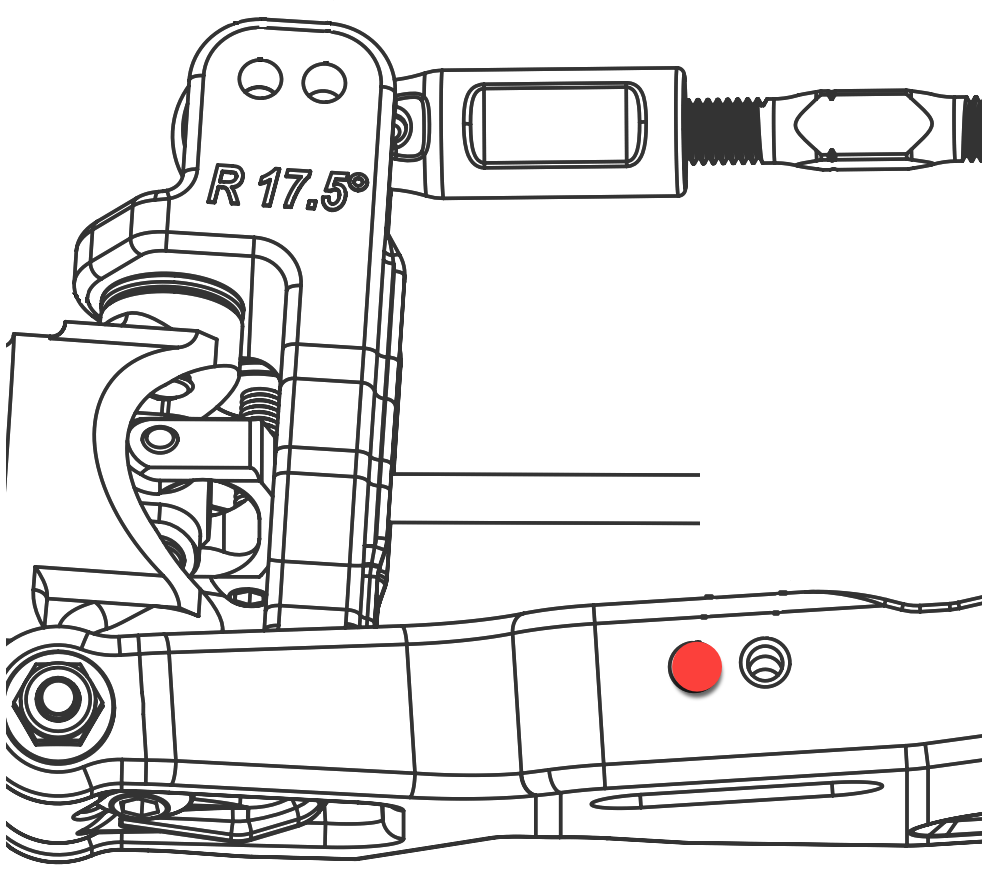

Spindle
Carrier Std

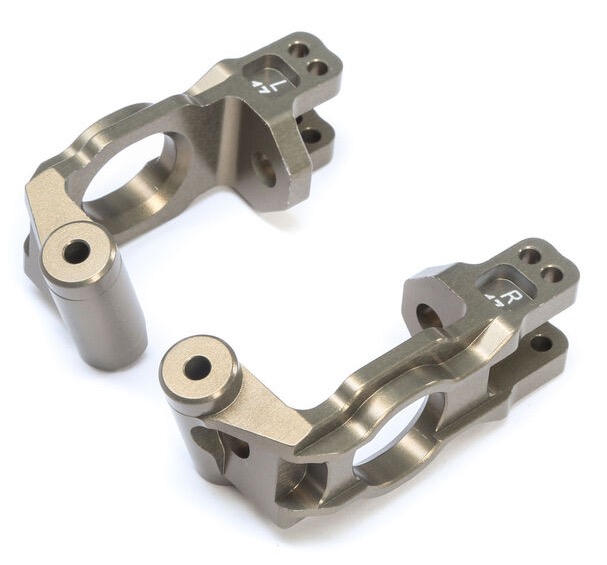

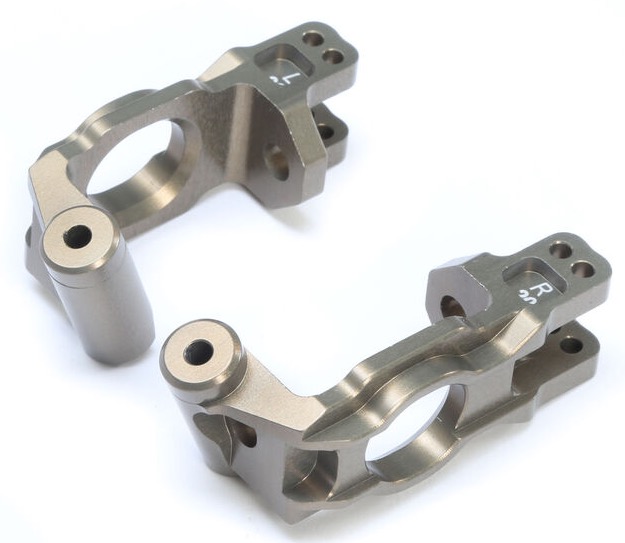

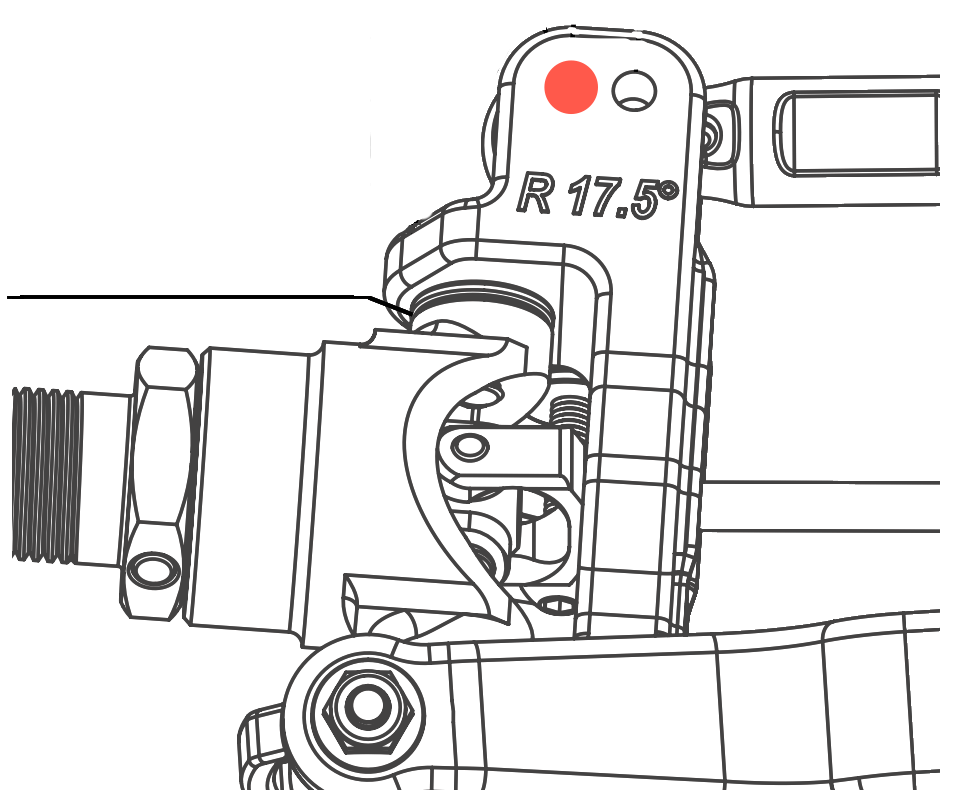

Aluminum 17.5°#TLR344040
Aluminum 20.0°#TLR344041

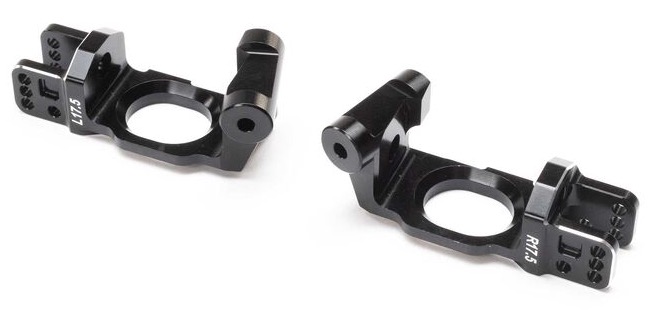

Aluminum V2 17.5° #TLR344051
Carrier Std
Aluminum 17.5°#TLR344040
Aluminum 20.0°#TLR344041
Aluminum V2 17.5° #TLR344051
|

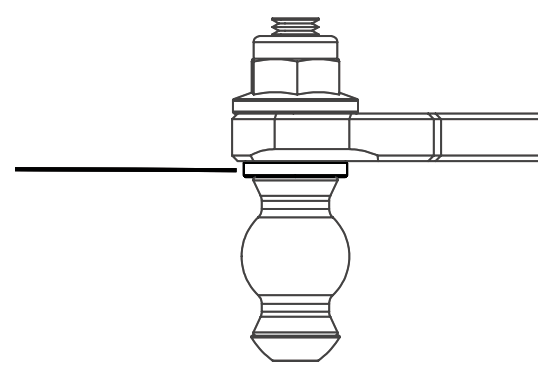

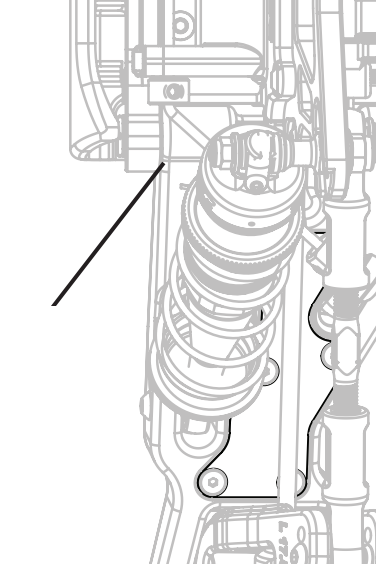

1mm 2mm |
 |
 |
 |
 |
 |
 |
|

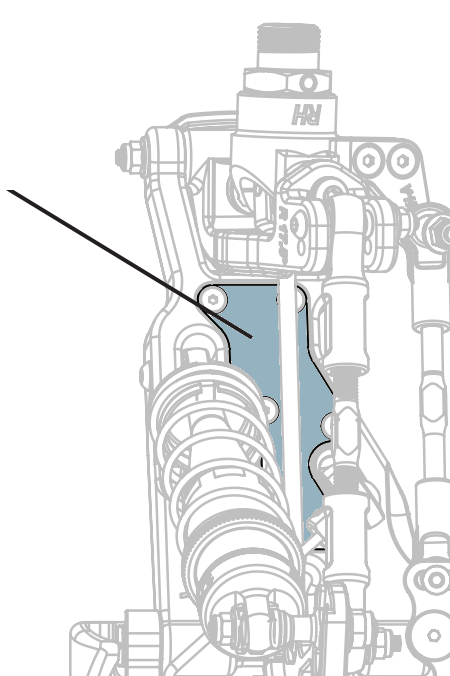

None Composite Carbon |
 |
|
None 1mm |
 |
Notes
CVA Drive Shaft: #TLR242031

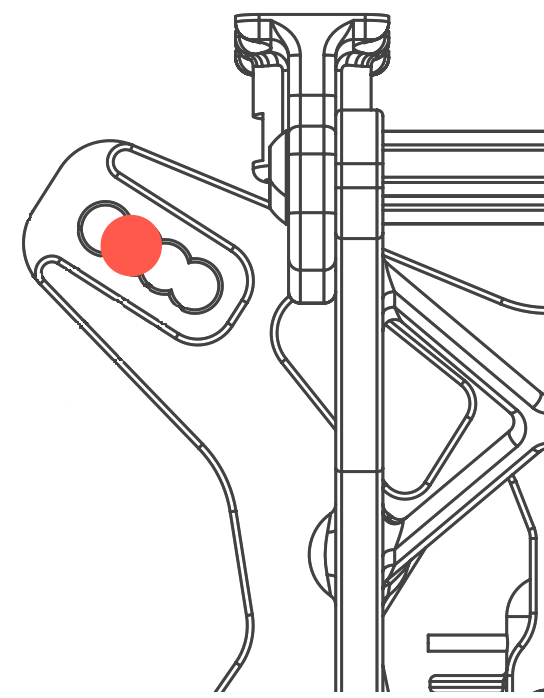

Rear Suspension
Ride Height
27mm
Camber
-1°

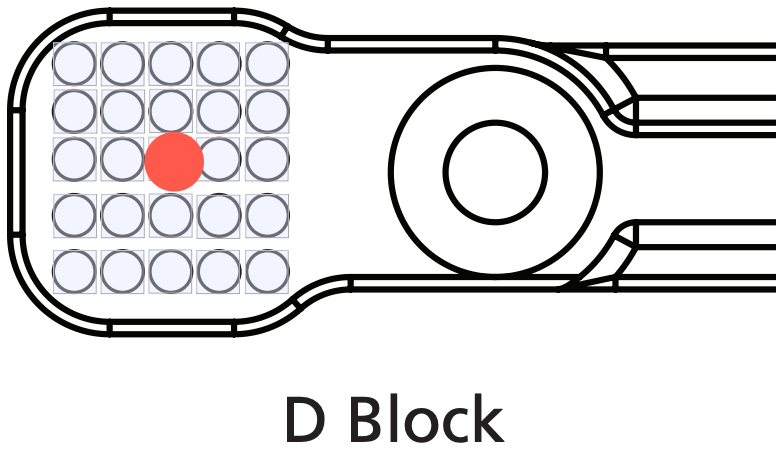

Toe
1° out
Sway Bar
2.6mm
Drive Shaft
CVA
#TLR242029
Universals
#TLR242047
#TLR242029
Universals
#TLR242047
Wheel Hex
Std
+1mm
+2mm
+1mm
+2mm

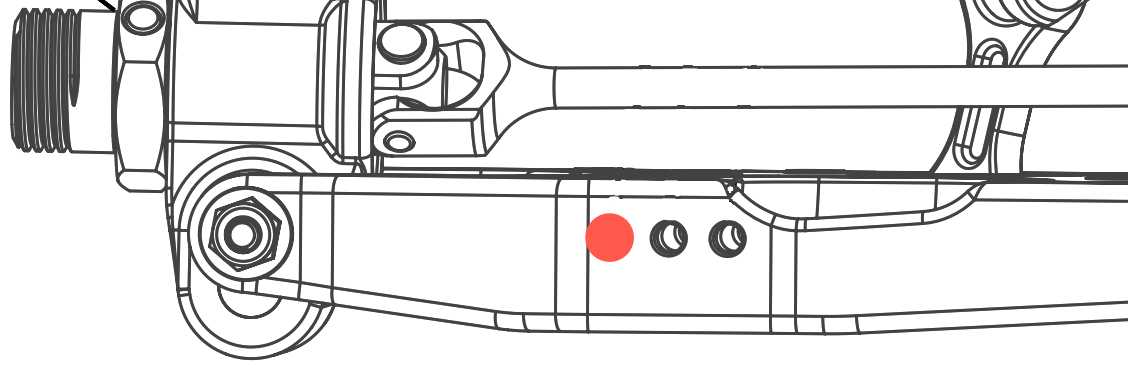

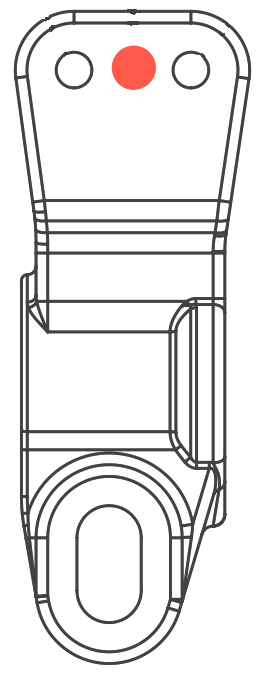

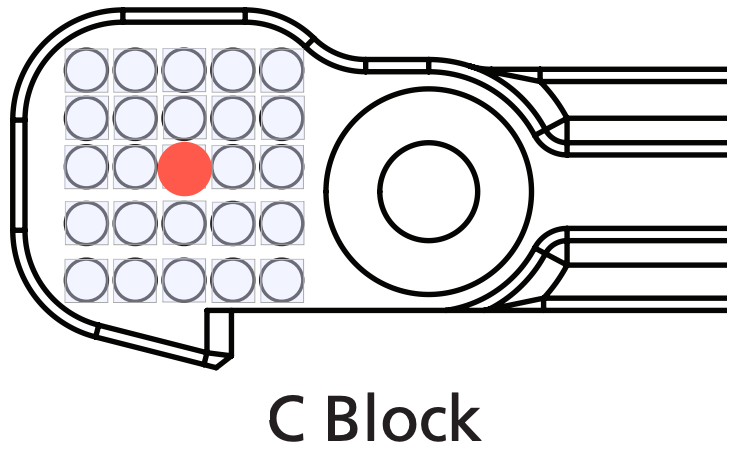

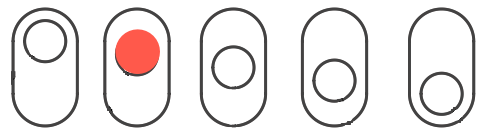

Rear Hub
Std

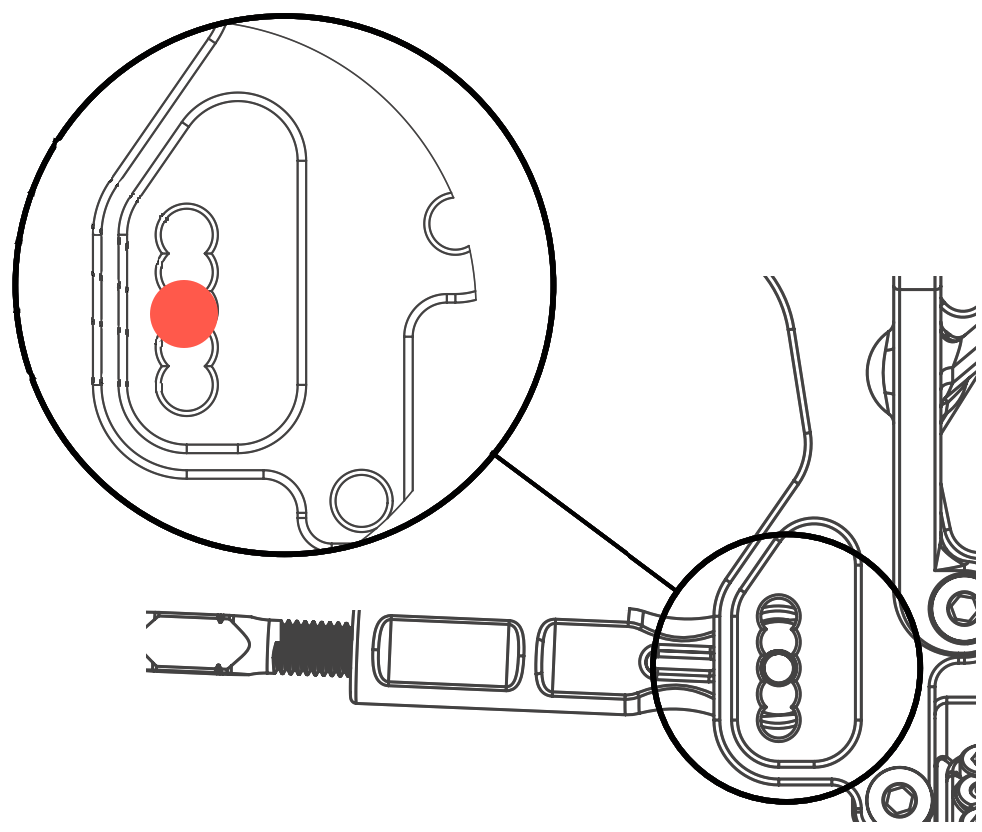

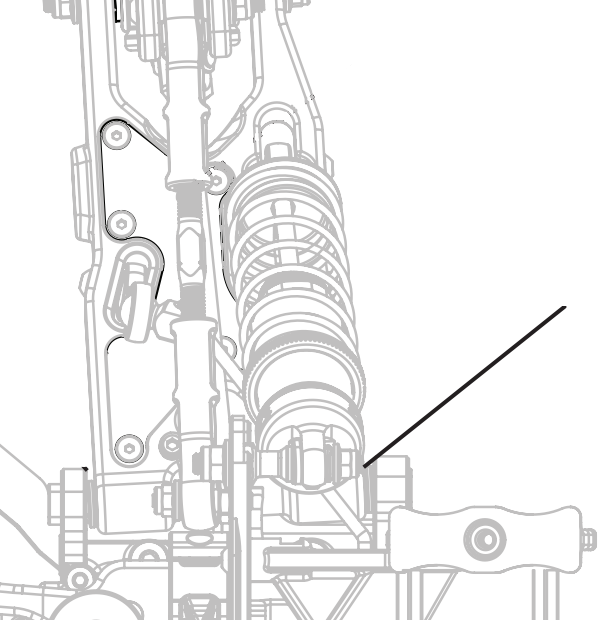

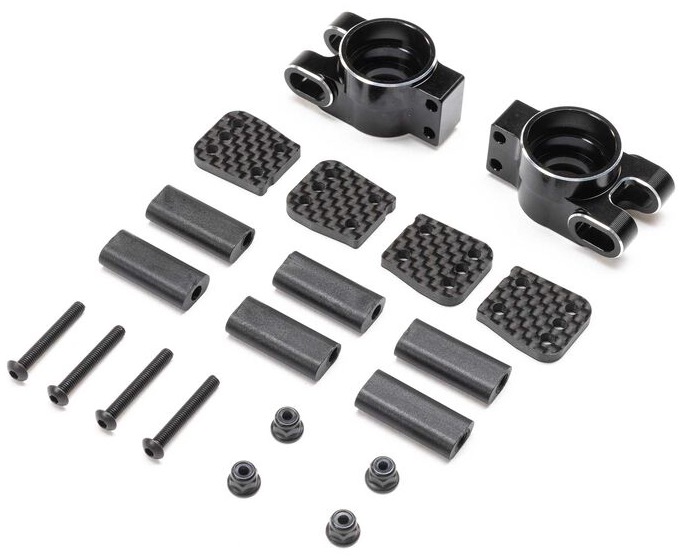

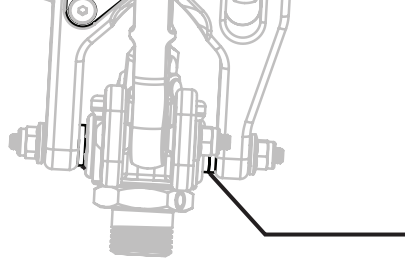

Aluminum #TLR344053
Aluminum #TLR344053

|
 |
 |
 |
 |
 |
 |

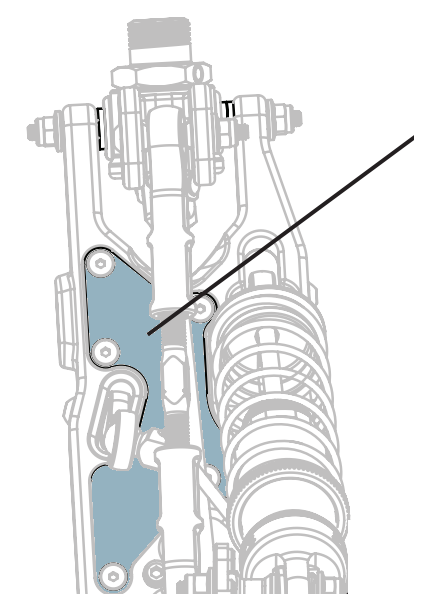

None Composite Carbon |
 |
0mm 1mm 2mm 3mm |
 |
0mm 1mm 2mm 3mm |
Notes
Differential
| Front | Center | Rear | |
| Fluid |
AE 7k #5454  |

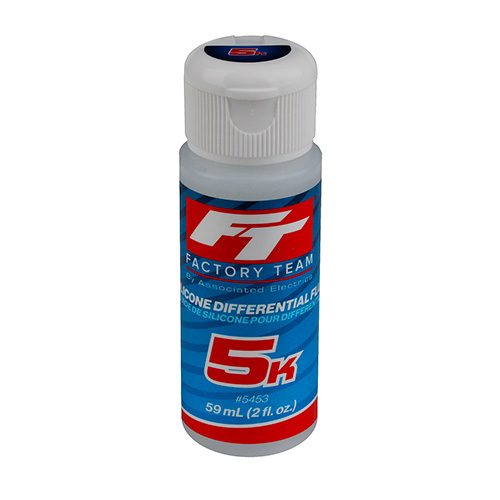

AE 5k #5453  |

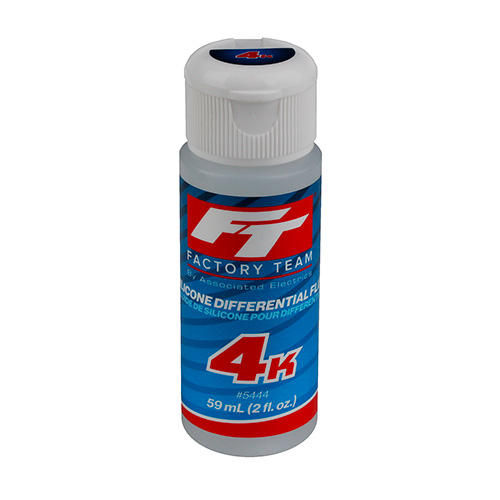

AE 4k #5444  |
| Pins | Al STL |
Al STL |
Al STL |
| Case | Std HD |
Std HD |
Std HD |
Shocks
| Front | Rear | |
| Shock Type |
Bladder Emulsion Vented |
Bladder Emulsion Vented |
| Shasft |
3.5 4.0 |
3.5 4.0 |
| Piston | 5x1.5 | 5x1.6 |
| Oil |
TLR 45wt #TLR74026  |
TLR 40wt #TLR74025  |
| Spring |

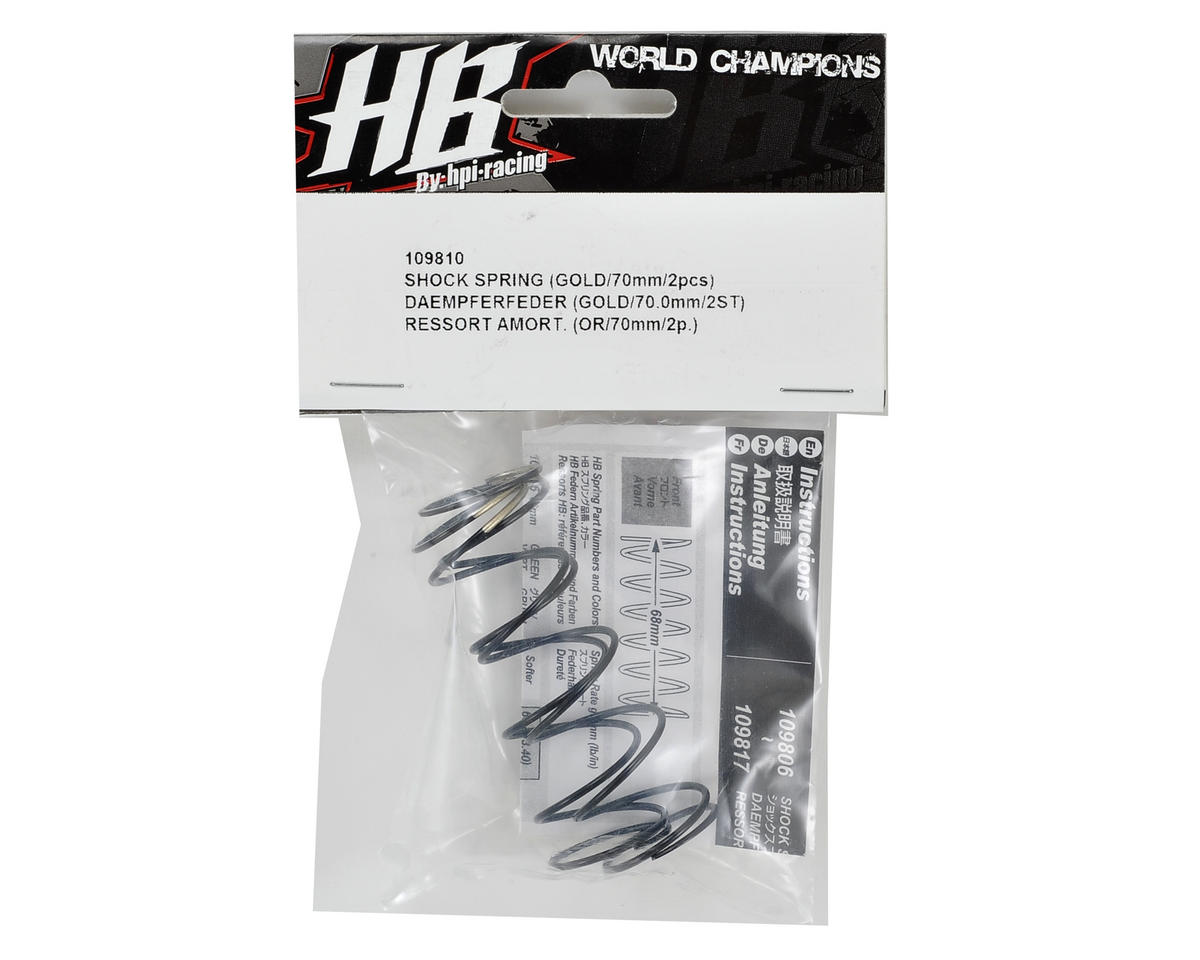

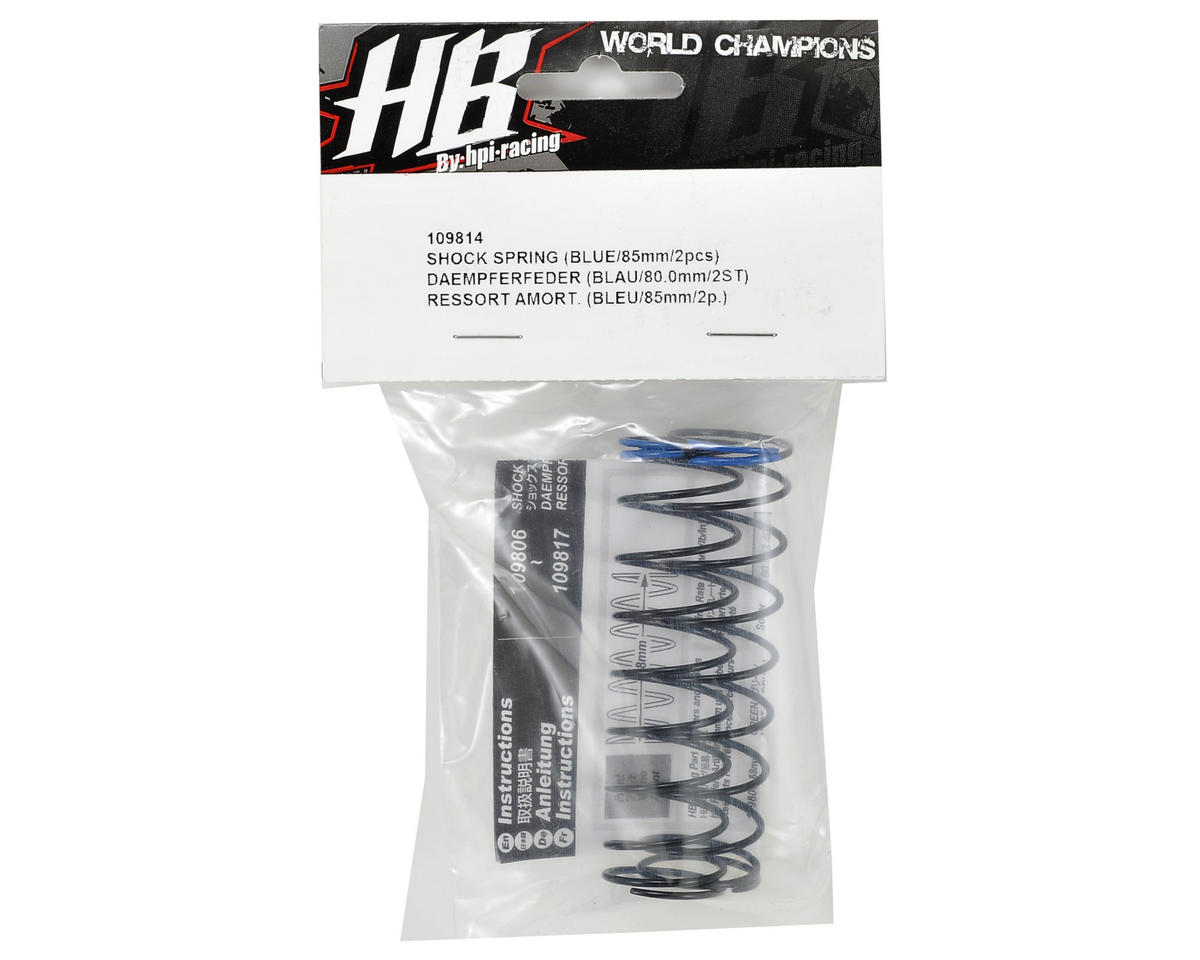

HB Gold #109810  |
HB Blue #109814  |
| Stroke | ||
| Droop*1 | 23 | 19 |
Notes
*1: Droops were measured w/ Hudy 30mm Droop Gauge
Tires
| Front | Rear | |
| Brand | TZO | TZO |

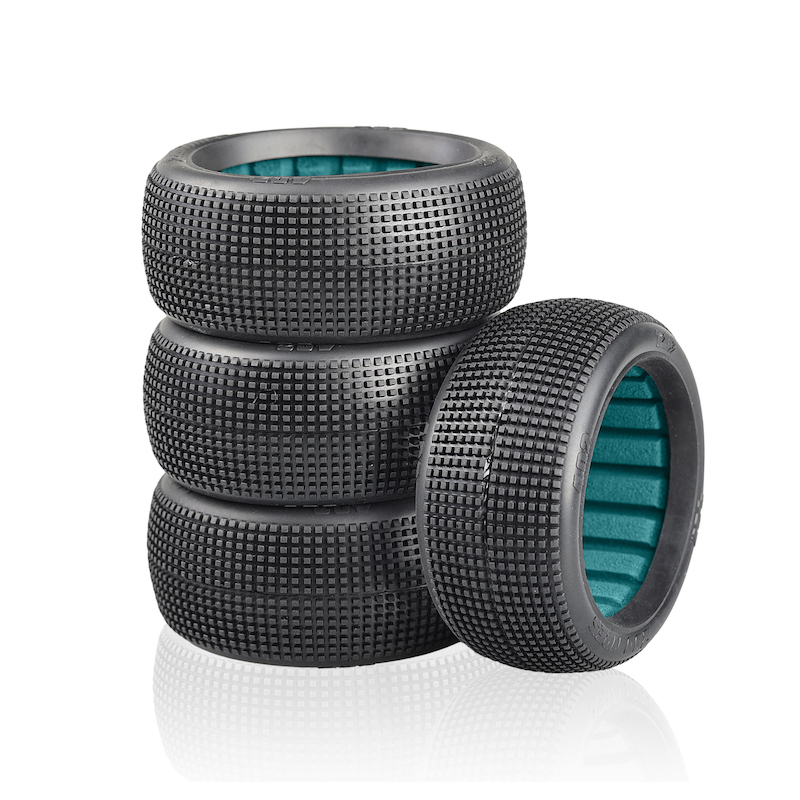

| Tread | 402 |
402
|
| Compound | Super Soft | Super Soft |
| Insert | TZO | TZO |
| Source | n/a | n/a |
Wing
Brand
TLR
Wicker Bill
n/a
Electronics
Radio

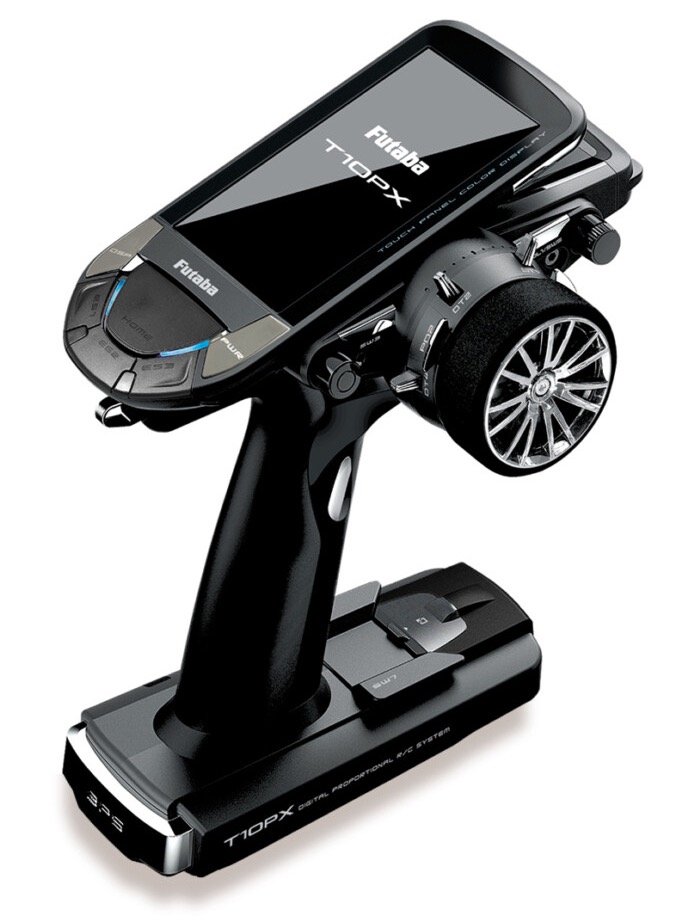

Futaba 10PX
EPAThrottle: 100%
Brake: 72%
Brake: 72%

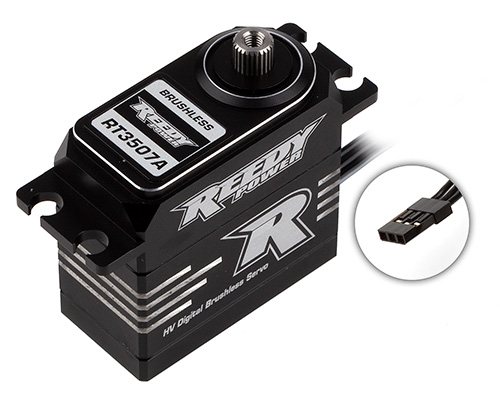

ServoReedy RT3507A #27117

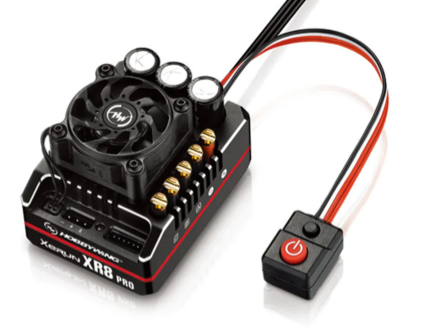

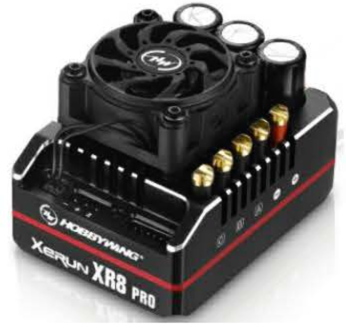

ESCHobbywing RX8 Pro

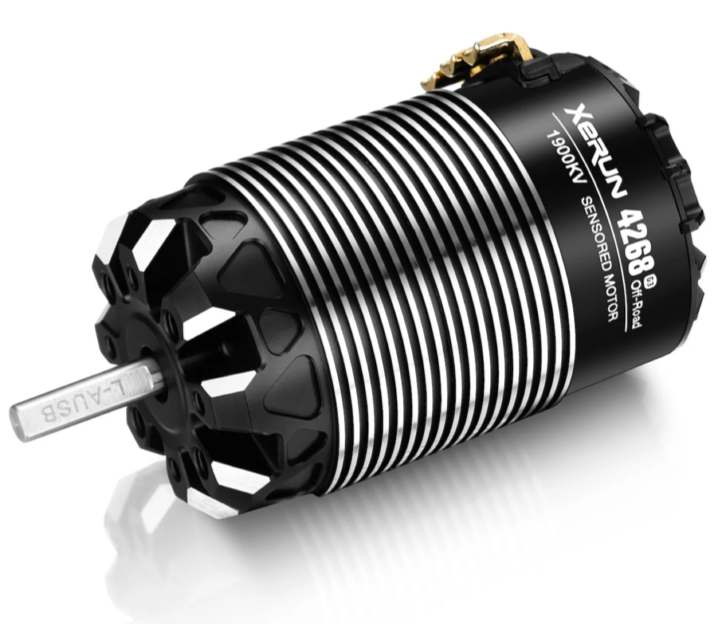

MotorHobbywing 4268 SD G3 2200kV
Spur/Pinion
47/14
Battery

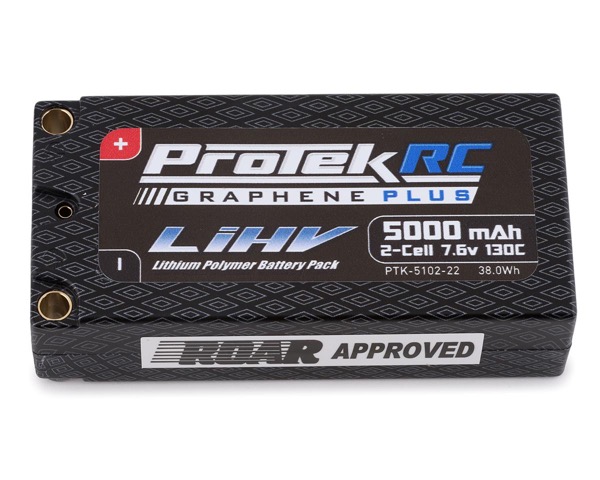

Protek 2S 130C 5000mAh PTK-5102-22
Notes

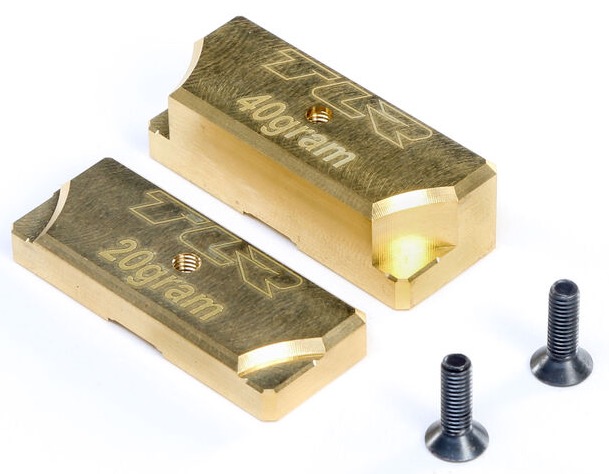

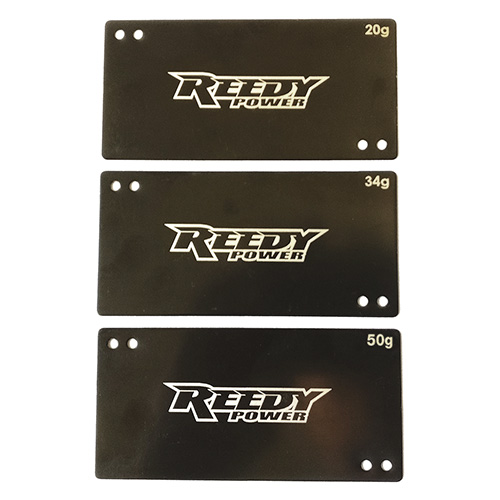

20g Shorty Battery Weight / Battery (total 40g)
Chassis
Ballast Weight
n/a
n/a
Front Brace
Composite
Aluminum (TLR341025)
Aluminum (TLR341025)
Center Diff
Top Plate Composite
Carbon
Top Plate Composite
Carbon
Battery Position
Fwd
Notes
| n/a |
| Firmware Version | Stock |
| Motor | Hobbywing 4268 G3 2200 kV |
| Endbell Timing | 20° |
| Rotor | Stock |
General Settings
| Running Mode | Forward with Brake |
| Reverse Force | 100% |
| LiPo Cells | 4 Cells |
| Cutoff Voltage | Auto (3.5V/Cell) |
| ESC Thermal Protection | Enabled |
| Motor Thermal Protection | Enabled |
| BEC Voltage | 6.0V |
| Sensor Mode | Full Sensored |
| Motor Rotation | CCW |
| Phase-AC Swap | Disabled |
Throttle Control
| Throttle Rate Control | 30 |
| Throttle Curve | Linear |
| Neutral Range | 6% |
| Initial Throttle Force | 1% |
| Coast | 0% |
| Drive Frequency | 16K |
| Softening Value | 0° |
| Softening Range | 0% |
Brake Control
| Drag Brake | 0% |
| Max. Brake Force | 80% |
| Initial Brake Force | Drag Brake |
| Brake Rate Control | 20 |
| Brake Curve | Linear |
| Brake Frequency | 2K |
Timing
| Boost Timing | 0° |
| Turbo Timing | 0° |
| Turbo Delay | 0.15s |
| Turbo Increase Rate (deg/0.1sec) | 6deg/0.1s |
| Turbo Decrease Rate (deg/0.1sec) | 18deg/0.1s |
